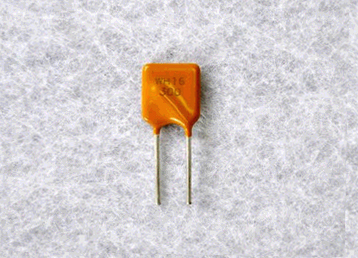

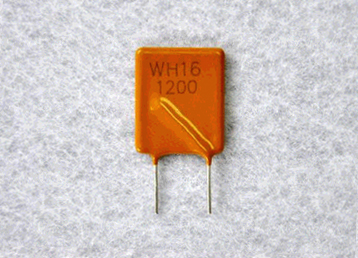

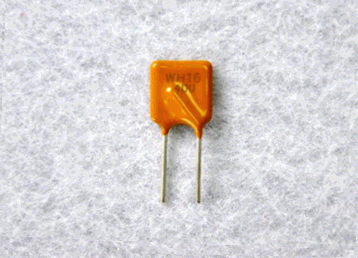

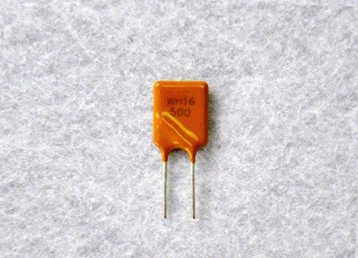

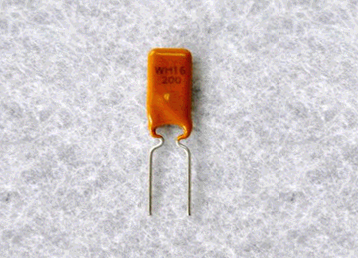

WH16系列自恢復保險絲
 免費樣品申請
WH16系列自恢復保險絲產品適用于工作電壓較低、工作電流較大的電路中，可廣泛應用于電源轉換器、摩托車、汽車、電腦電源、微電機、計算機接口、CPU等領域。

WH16 系列 WH16 Product Data
WH16 電氣特性與產品尺寸 WH16 product characteristics and dimensions (25℃)

Model 型號 Ih It Vmaxi Imax Rmin Rmax Product Dimensions (mm)
最大產品尺寸
A A V A Ω Ω Style A B C D Lead
WH16-100 1.0 1.7 16 40 0.100 0.300 F2 7.0 11.4 5.1 3.0 0.6
WH16-200 2.0 3.4 16 40 0.050 0.120 F3 6.0 14.8 5.1 3.0 0.6
WH16-300 3.0 5.1 16 100 0.034 0.095 F1 8.8 11.8 5.1 3.0 0.8
WH16-400 4.0 6.8 16 100 0.018 0.043 F1 9.5 12.5 5.1 3.0 0.8
WH16-500 5.0 8.5 16 100 0.014 0.030 F1 9.8 14.6 5.1 3.0 0.8
WH16-600 6.0 10.2 16 100 0.009 0.025 F1 11.6 14.6 5.1 3.0 0.8
WH16-700 7.0 11.9 16 100 0.006 0.022 F1 13.0 17.0 5.1 3.0 0.8
WH16-800 8.0 13.6 16 100 0.006 0.016 F1 14.5 20.0 5.1 3.0 0.8
WH16-900 9.0 15.3 16 100 0.005 0.012 F1 14.5 20.0 5.1 3.0 0.8
WH16-1000 10.0 17.0 16 100 0.0045 0.011 F1 17.5 24.5 10.2 3.0 0.8
WH16-1100 11.0 18.7 16 100 0.004 0.010 F1 17.5 24.5 10.2 3.0 0.8
WH16-1200 12.0 20.4 16 100 0.0035 0.009 F1 17.5 24.5 10.2 3.0 0.8
WH16-1400 14.0 23.8 16 100 0.002 0.008 F1 20.5 28.0 10.2 3.0 0.8
WH16-1800 18.0 30.4 16 100 0.0023 0.0055 F1 25.7 32.3 10.2 3.0 0.8

 符號定義 Definition

符號Sign 說明 Definition
Ih WHPTC在25℃環境溫度下的最大 工作電流 Hold current-maximum current at which the device will not trip at 25℃
It WHPTC在25℃環境溫度下啟動保護的最小電流 Trip current-minimum current at which the device will always trip at 25℃
Vmax WHPTC的最大工作電壓 Maximum voltage at which the device will not trip
Vmaxi WHPTC在阻斷狀態下所承受的最大電壓 Maximum voltage device can withstand without damage at it rated current
Imax WHPTC能承受的最大電流 Maximum fault current device can withstand without damage at rated voltage
Rmin WHPTC工作前的初始最小阻值 Minimum device resistance at 25℃ prior to tripping
Rmax WHPTC工作前的初始最大阻值 Maximum device resistance at 25℃ prior to tripping

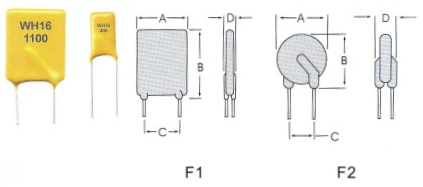

Figure 圖示 The Figure of WHPTC
Lead 導線尺寸 Lead diameter



環境溫度及電流值折減比率表

Discount rate of ambient temperature and current



WH Series -20℃ 0℃ 25℃ 30℃ 40℃ 50℃ 60℃ 70℃ 85℃
WH6 130% 115% 100% 91% 83% 77% 68% 61% 52%
WH16 132% 120% 100% 96% 88% 80% 71% 61% 47%
WH30 130% 115% 100% 91% 83% 77% 68% 61% 52%
WH60 136% 119% 100% 90% 81% 72% 63% 54% 40%
WH130 136% 119% 100% 92% 81% 72% 63% 54% 40%
WH250 132% 117% 100% 91% 85% 77% 68% 61% 48%
WH600 138% 119% 100% 92% 83% 73% 64% 55% 42%

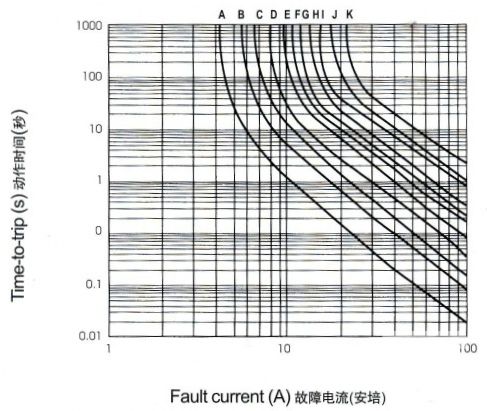

  WH16系列25℃時典型動作時間曲線 WH16 Typical Time to Trip at 25℃




A:WH16-300
B:WH16-400
C:WH16-500
D:WH16-600
E:WH16-700
F:WH16-800
G:WH16-900
H:WH16-1000
I:WH16-1100
J:WH16-1200
K:WH16-1400

以上產品資料內容如有變更將不另行通知，敬請諒解。不詳之處，請來電咨詢，謝謝！

The product information will be updated without notice. If there is any problem, please call us, thanks!
